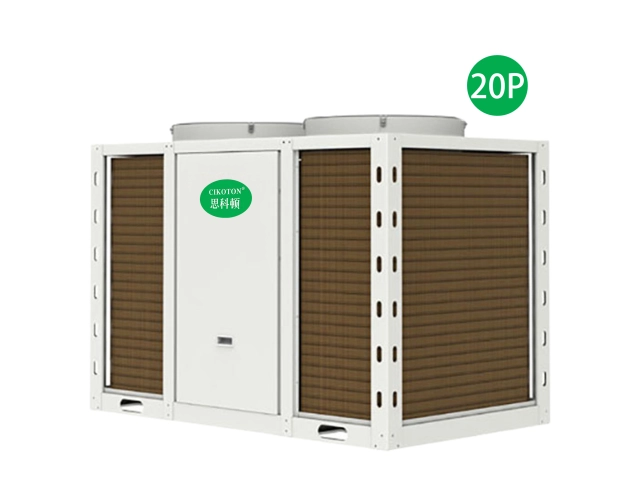

20HP SPA Pool Heat Pump Heater

  1. Heating capacity:78kW
  2. Max Outlet Water Temp: 60℃
  3. Power Supply: 380V/50Hz/3ph
  4. Running Temp: -7℃ to 43℃
  5. Refrigerant:R410A
  6. COP:4.21

SPECIFICATION





We care every detail on what you need!

Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection



Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan





  • Smart Mobile WIFI APP Control

The intelligent controller is used to realize the linkage control between the heat pump unit and the terminal application to improve the operation efficiency.  Through the WIFI APP, users can operate their devices from their smartphones anytime and anywhere.

  • Broad Climate Suitability

The unit can adapt to wide climate. Under lab test, it keeps stable operation in -15℃ to 55℃. This character makes the unit suitable for markets all over the world.

  • Low Noise Running

The DC inverter fan with special design blades not only saves energy but also helps to keep the operating noise 20% lower.

  • Centralized Control

CIKOTON COMMERCIAL POOL SERIES comes equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the master units can work together with higher efficiency without being interfered by any failure of the salve unit during operation.

  • Unique Protection Functions

There are multiple intelligent protections functions of CIKOTON POOL HEAT PUMP: ground protection, temp differential protection, losting-phase protection, high/low voltage protection, water flow protection, frost protection, temp sensor fault protection.

  • Commercial Occasion Application

CIKOTON COMMERCIAL POOL SERIES are widely used in public places all over the world, such as hotels schools, aqua parks, gyms, etc.

  • OEM & ODM & ONE-STOP solution

CIKOTON has more than 10 years of OEM ODM experience, and has joined in many household and commercial customized projects. We accept OEM for logo, style, packaging and material. CIKOTON can also provide ONE-STOP solution service for pool accessories (water pump /sand filter/ pool cover, etc.).



Packing: Wooden plywood box with built-in cushion foam for swimming pool heat pump



Heat Pump Installation System

Basically, the heat pump is mounted outdoors in a central position with connections to the water tank, heat pump kit, and buffer tank, which are linked to the various fan coils. Easy Installation helps to realize heating, hot water, and cooling integration solution.
